Gas Station Canopy Restoration: What to Inspect Before You Hire

What to take away

• Inspect the deck, columns, and footings before you ask for bids.
• Check drainage, ponding, and downspout routing on a rainy day.
• Treat lighting, signage, and wiring as part of the canopy scope.
• Get a stamped structural opinion when rust or deflection appears.
• Ask the building department what it requires for a restoration permit.

A gas station canopy restoration inspection starts at the deck, not the paint. Owners who skip the steel and wiring checks often pay twice: once for the first scope and again for the work the first crew missed. The checks below sort findings by how soon they surface and what they cost in delays.

The defects that look fine at first

Surface rust on a fascia can hide section loss at the column base. Situation: the canopy passes a walk at ground level. Consequence: the owner hires a painter, and the steel keeps corroding from the inside. Prevention: probe with a screwdriver and a hammer at every column base, and photograph what you find.

A small sag in the fascia line can mean a failed purlin above the ceiling. The deck looks flat from the street. A repair crew opens the ceiling and finds bowed framing that needs an engineer.

Prevention: pull the last structural drawing from the permit file and compare it to the existing framing. Deck rust under the fascia can stay hidden for months or seasons until a ceiling panel falls.

Canopy design and materials vary by era, as the Wikipedia overview of gas stations notes. For a broader records habit, the Gas Station Preservation Basics checklist gives owners a starting file.

The expensive failures

Footing failures are the ones that blow a budget line. Situation: columns sit on a slab with no visible footing. Consequence: a repair estimate omits foundation work, then the contractor finds soft soil. Prevention: ask for a probe pit or a soil test before signing.

Drainage failures look minor until a hard rain. Situation: a low spot holds water on the deck. Consequence: ponding loads the steel and rusts seams. Prevention: watch one storm and mark where water still stands after 24 hours. A Choosing Gas Station Preservation Help guide can help you brief a contractor on these findings.

Check	What to record	Why it changes the bid
Deck rust	Depth and spread	Separates panel repair from replacement
Column base	Section loss	Triggers engineer review
Drainage	Standing water	Adds slope or drain work
Wiring	Conduit and fixture condition	Expands lighting scope

The failures that waste a whole day

Permit timing can stop a crew at the curb. Situation: the owner books a crew before the building department approves the plan. Consequence: the inspector finds no approved plan, and the crew cannot start. Prevention: call the local building department first and ask what a canopy restoration permit requires.

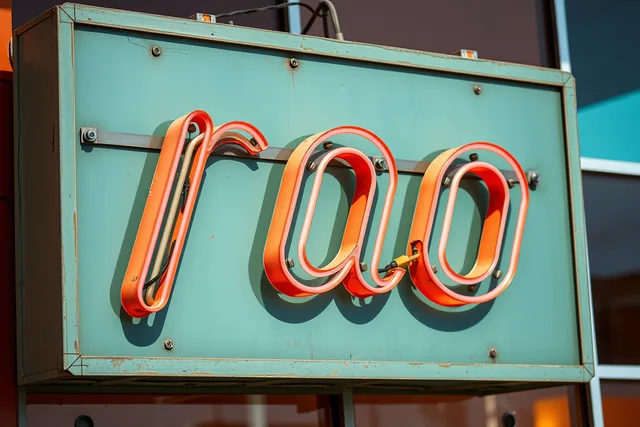

Sign removal can strand a canopy job. Situation: the sign is attached to the canopy, not the building. Consequence: sign and electrical disconnects delay the steel work. Prevention: list sign removal and disconnect points in the scope, and read Neon Sign Restoration Help before you assume the sign can stay.

A canopy that looks plumb from the street can deflect when a boom lift rolls onto the lot. Situation: the contractor sets up a lift for access. Consequence: the deck flexes and the work stops on arrival. Prevention: have an engineer review the deck before mobilization.

What would have prevented each

Prevention is mostly a records and access plan.

• Photograph the underside before any ceiling access.
• Mark rust, cracks, and ponding on a simple plan.
• Pull the last structural drawing from the permit file.
• Ask the fire marshal about clearance under the canopy.
• Get a written scope with exclusions.

A canopy inspection is a records problem as much as a steel problem.

Where the fascia is wood, the National Park Service brief on wood exterior finishes explains repair limits. If anyone opens the canopy, OSHA rules on ladders and fall protection apply. A roadside renovation photography field list can keep the before images usable.

Common questions

What does a gas station canopy restoration inspection cover? It covers the deck, columns, footings, drainage, and lighting. Attached signs are part of the scope too.

Do I need a permit before canopy repair? Many local building departments require a permit for structural or electrical work. Call before you hire, and ask what drawings they need.

When should I call an engineer? Call when you see section loss, deflection, cracked welds, or ponding that returns. A stamped opinion protects you before bids.

Can I keep the existing canopy and just replace the fascia? Sometimes, if the steel and footings pass inspection. If they do not, a fascia-only scope can fail on arrival and double the cost.
